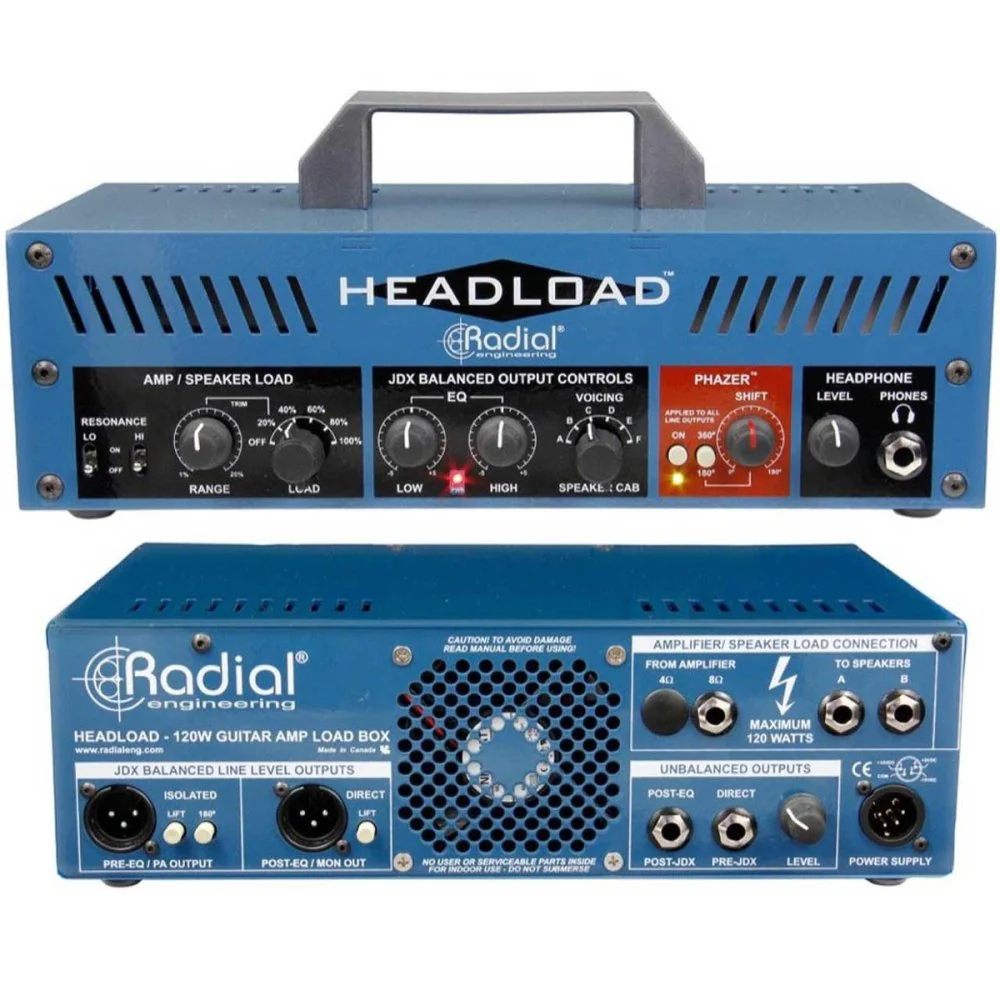

The Headload™ is a power attenuator that connects between your amplifier and speaker to capture the dynamics and warmth of your amp at low, neighbour-friendly volumes.

Featuring two built-in JDX amp DIs—one pre-EQ and one post-EQ—the Headload eliminates the need to use a microphone to capture the sound from your amplifier. Should you decide to combine the DI signal with a microphone, the Headload is augmented with a built-in Radial Phazer to time-align the two signals to create massive tones. The Headload uses a 6-position rotary switch to set the desired power reduction from unaltered all the way down to complete silence. When the output is completely soaked, the high-quality headphone amplifier can be used for silent 3:00AM practicing.

• Combination load box and DI with speaker emulation

• Can handle up to 130 watts RMS (180 peak)
• Attenuate down to 1% of total power

• 120W load box with six attenuator settings
• Radial JDX direct box output with six cabinet tones
• Built in Phazer to time-align the JDX out with a mic
• Front panel tone controls to adjust tone

• Get the best tone at low stage volumes
• Amazing natural tone from JDX out
• Works great live and in the studio
• Brings in-ear monitors to life! Cool Stuff
• Built-in headphone amp for practicing
• Can be 19” rack mounted with optional kit
• Multiple outputs for patching
• Resonant filters to optimize stage amp sound
• Dimensions (W x D x H) • 12” x 6” x 3.5” (154mm x 89mm x 87mm)
• 3 Year transferable warranty
• Includes 15VDC power supply
