Mix and capture two non-HDCP 4K live videos at 1080P UVC format on PC or mobile device via its USB 3.2 Gen1 interface with seamless transition
Intuitive Android / iOS App control – set up your camera gear and direct your show from anywhere
Supports real-time HDMI program video preview
Easily identifiable chroma keys – can make the video look like you are anywhere by changing the background
Provides audio mixer with additional dual analog audio inputs
Supports protected video switching mode for regular event usage
Compatible with USB & Thunderbolt 3 (USB-C) specification specification

A Professional One-Person Production Studio

Providing the most fluid video streaming workflow for dual camera / single operator setups, CAMLIVE™ PRO is a video capture and switch device that can turn any professional 4K camera, camcorder, or GoPro into an HDMI video source for a computer or mobile device to stream, coupled with the incredibly feature-rich DVE (Digital Video Effect) options and chroma keyer. Just connect a camera, mic, and laptop, and you are ready to stream and switch between two video inputs.

4K Capture, Stream, and Switch Instantly

CAMLIVE™ Pro is designed to easily connect with two 4K video sources and mix and stream in FHD format to a worldwide audience with outstanding video effects and professional full HD quality. It’s completely plug and play and compatible with any streaming software and social media platform, such as Skype, Teams, Zoom, OBS, YouTube, and Facebook. For streamers who want to make interviews, presentations, or even live events, using CAMLIVE™ PRO is easy and fast!

Free ATEN OnAir Lite Control App with Continuous Updated Features

The ATEN OnAir Lite control app allows for controlling remotely, editing in real-time, chroma keying, and arranging multi-elements into your program mix. You can switch and mix video/audio, change settings and effects, and save up to 8 scene presets for quick switching. Upcoming new features will include command shortcuts for chats, animations, and sound effects, all to help streamline your workflow.

Direct Your Stream via Bluetooth

The wireless remote control function means you don’t need to stay by your equipment or hire a person to help direct your show. A single user can easily produce pro-level video content with smooth transitions and pro-looking effects, without any production crew required.

Make Your Livestreaming Unique with DVE (Digital Video Effect) and Chroma Keyer

The built-in DVE lets you create professional picture-in-picture and picture-by-picture effects with amazing transitions. With 4K resolution input capability, you can even split, crop, or scale images and insert them into different scenes without losing any image quality. The most exciting is using chroma keying with eye-poping effects for a superior finish.

Package Contents

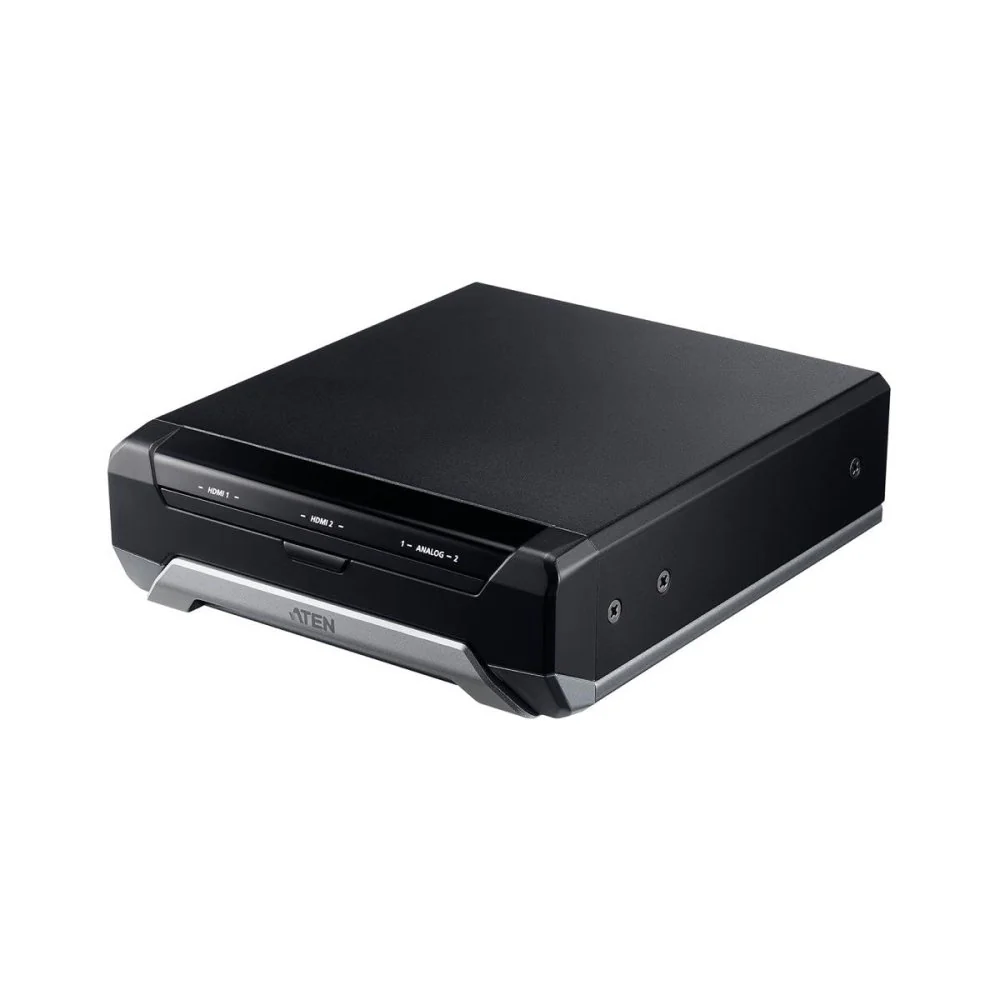

1x UC3022 CAMLIVE™ PRO Dual HDMI to USB-C UVC Video Capture
1x USB-B to USB-C Cable
1x USB-B to USB-A Cable
1x Power Adapter
1x User Instructions

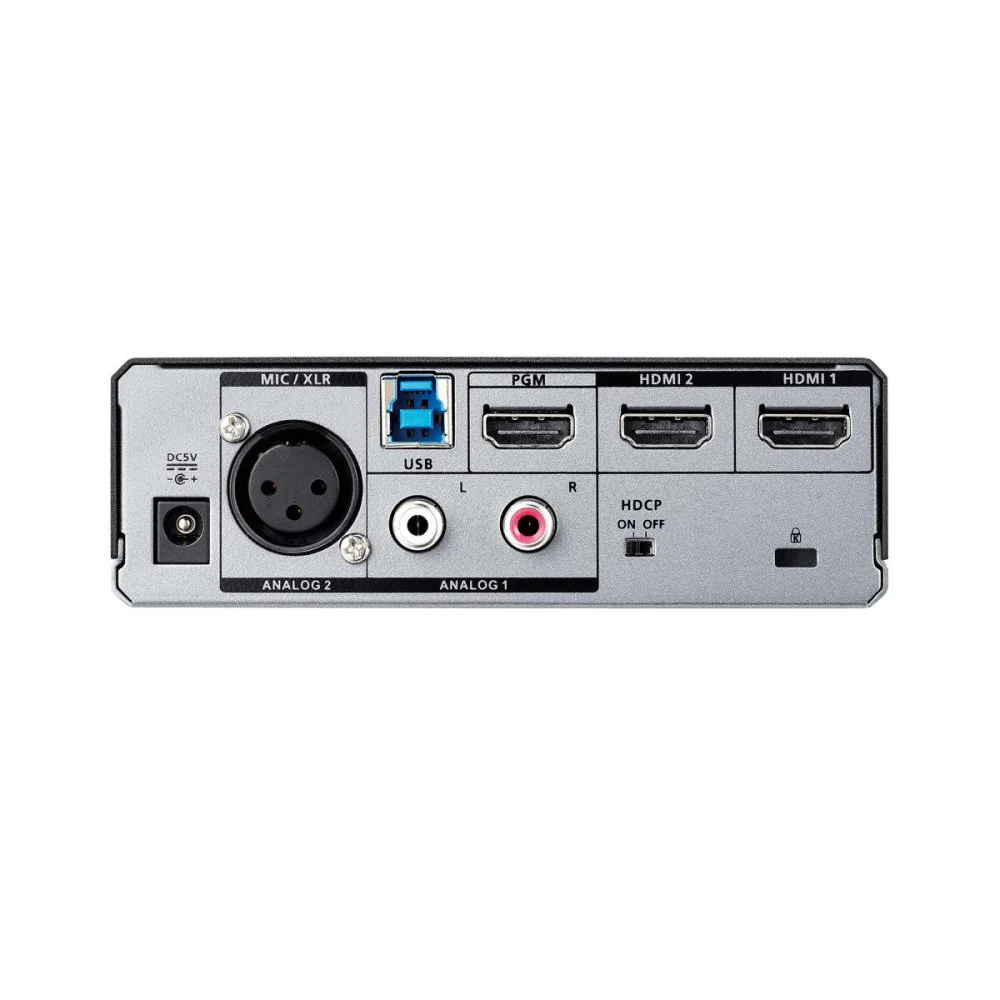

Connectors
Video In	2 x HDMI Type A Female (Black)
USB Port	USB 3.2 Gen1 Type-B Male (Blue)
Video Output	1 x HDMI Type A Female (PGM Video, Black)
Audio Inputs	1x balanced analog audio via XLR connectors 1x unbalanced audio via RCA connectors.
Video Resolution	Video input: 2160p30/25/24, 1080p60/50/30/25/24, 720p60/50, HDMI 1.4b support PGM video out: 1080p60/50/30/25/24, 720p60/50, HDMI 1.4b support (unencrypted) (Support encrypted PGM output at 2160p30/25/24, 1080p60/50/30/25/24, 720p60/50 with UVC capture disabled)
Audio Sampling	16-bit PCM audio, 44.1KHz and 48KHz
Output	Uncompressed 1080p60 & 720p60 UVC video stream with UAC audio (Uncompressed video stream is only available on USB3.1 connection)
Environmental
Operating Temperature	0 - 40 ºC
Storage Temperature	-20 – 60 ºC
Humidity	0 - 80% RH, Non-Condensing
Minimum Hardware Requirements	PC/Mac: CPU: Intel® i3 Dual Core 2.8Ghz or higher RAM: 4GB or more One USB-C interface or USB-A interface Smartphone: Android device with UVC support and USB-C interface* *For detail UVC compatible device list, please refer to following info revealed by third party App. https://www.camerafi.com/supported-devices/
Connection	Bluetooth Low Energy(BLE) technology
OS Support	Windows 10 and above * Mac OS X 10.13 and above Android 5.x and above or iOS 10.1 and above , with Bluetooth 4.2 or higher supporting Bluetooth Low Energy (BLE) *Window 7 requires driver installation
Physical Properties
Housing	Metal
Weight	0.68 kg ( 1.5 lb )
Dimensions	13.00 x 15.18 x 4.25 cm (5.12 x 5.98 x 1.67 in.)
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Videos & Photos

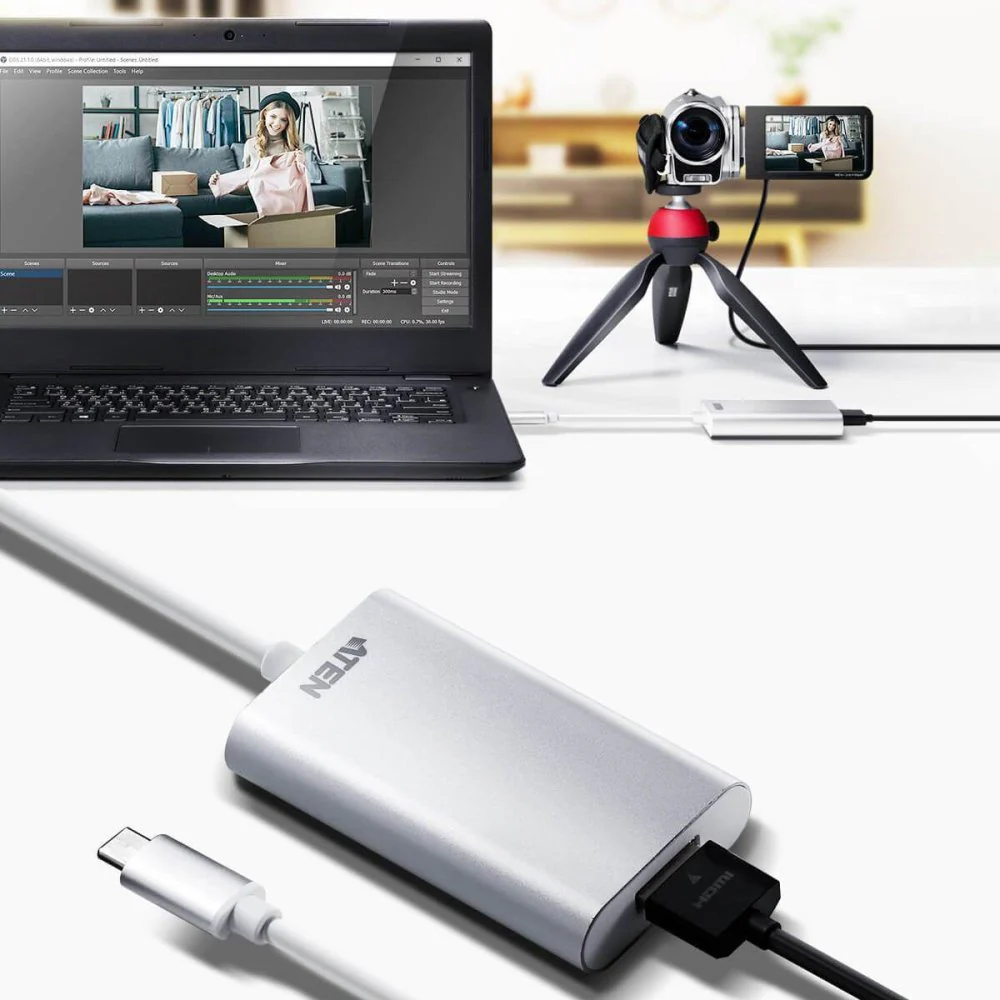

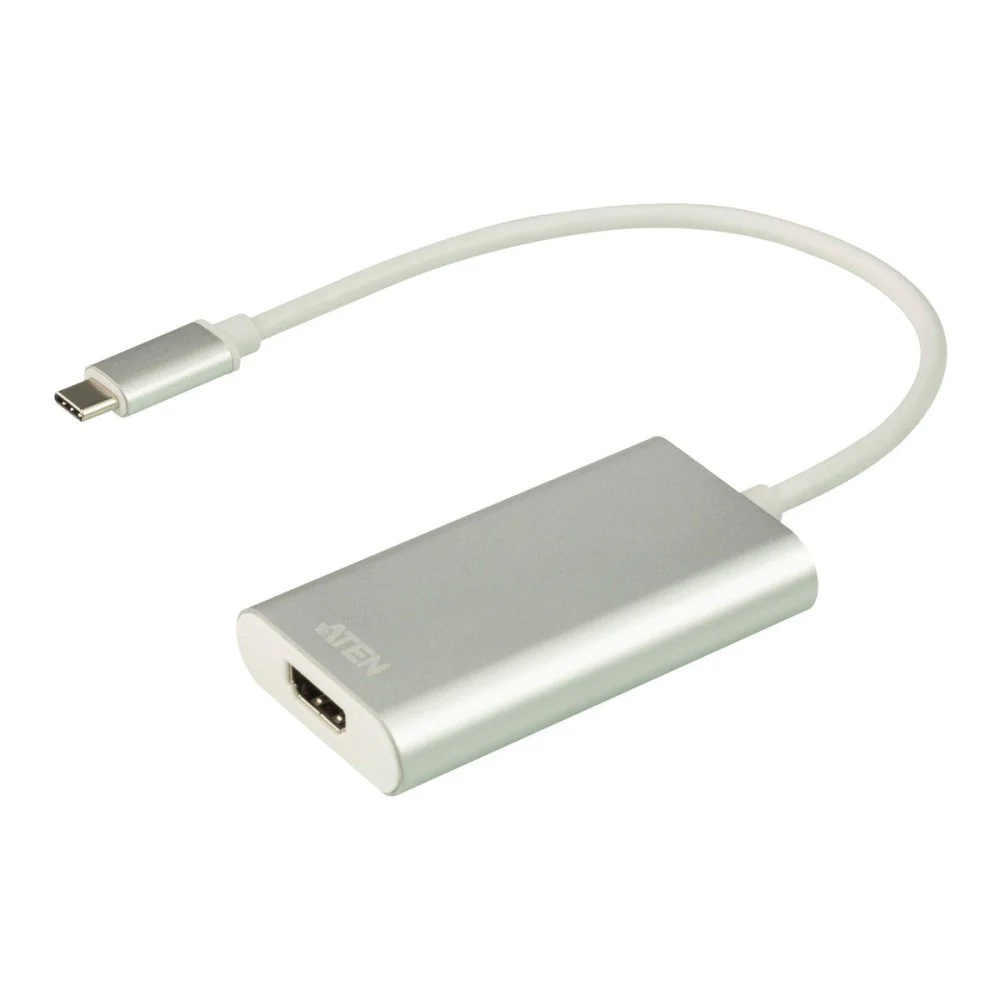

ATEN | UC3020-AT | CamLive HDMI to USB-C | Video Capture & Streaming Card | Supports Mac & Win

ATEN | UC3022 | CAMLIVE™ PRO | Dual 4K HDMI to USB-C UVC Video Capture & Streaming Card | Supports Mac, Win, iOS & Android

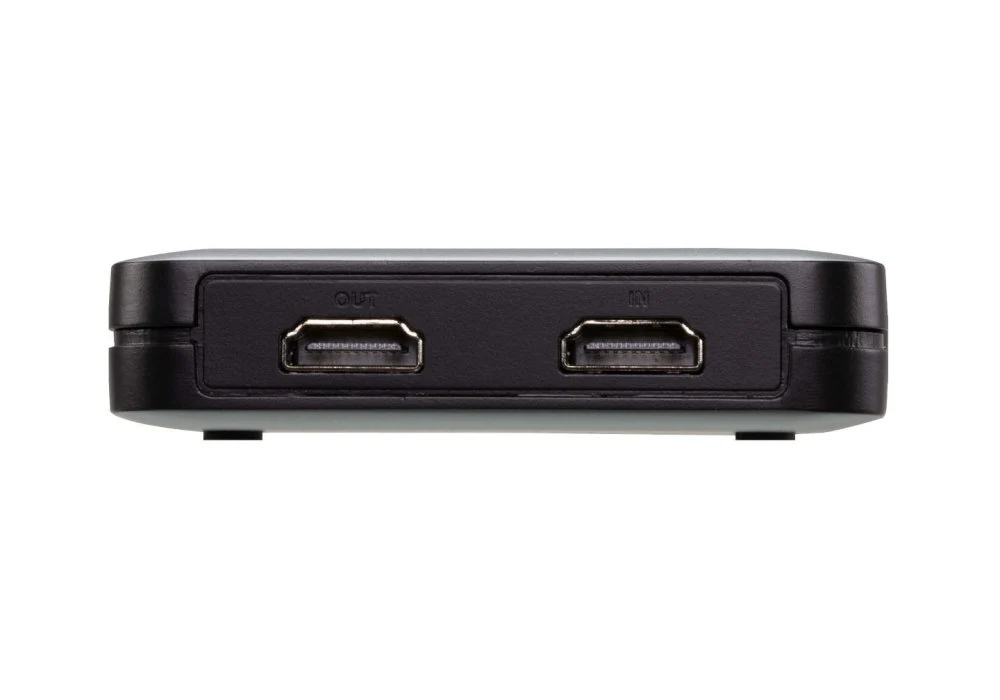

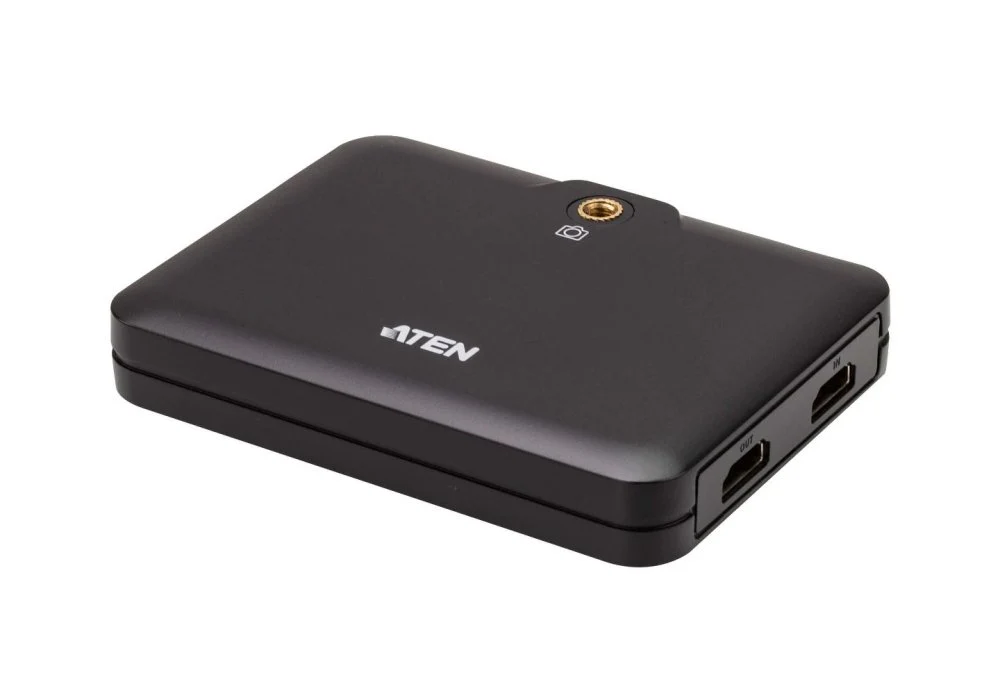

ATEN | UC3021 | CAMLIVE+ | HDMI to USB-C UVC Video Capture w/PD3.0
